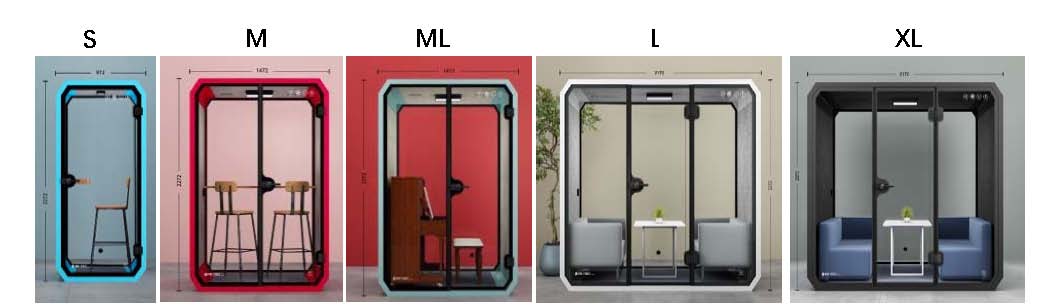

Product Dimension
| Model | Cabin External | Cabin Internal | G.W. | N.W. | Capacity |
| S | D1010*W972*H2272mm | D900*W840*H2140mm | ≈265KG | ≈221KG | 1 PAX |
| M | D1310*W1472*H2272mm | D1200*W1340*H2140mm | ≈411KG | ≈351KG | 1-2 PAX |
| ML | D1910*W1472*H2272mm | D1800*W1340*H2140mm | ≈458KG | ≈388KG | 2 PAX |
| L | D1610*W2172*H2272mm | D1500*W2040*H2140mm | ≈611KG | ≈546KG | 4 PAX |
| XL | D2210*W2172*H2272mm | D2100*W2040*H2140mm | ≈712KG | ≈643KG | 6 PAX |
Product Parameters
| Item | Description | ||||||
| Cabin Frame Material | Aluminum alloy frame be made of reinforced die-casting profile, be electrostatically sprayed with high-quality cyclohydrogen resin powder. | ||||||

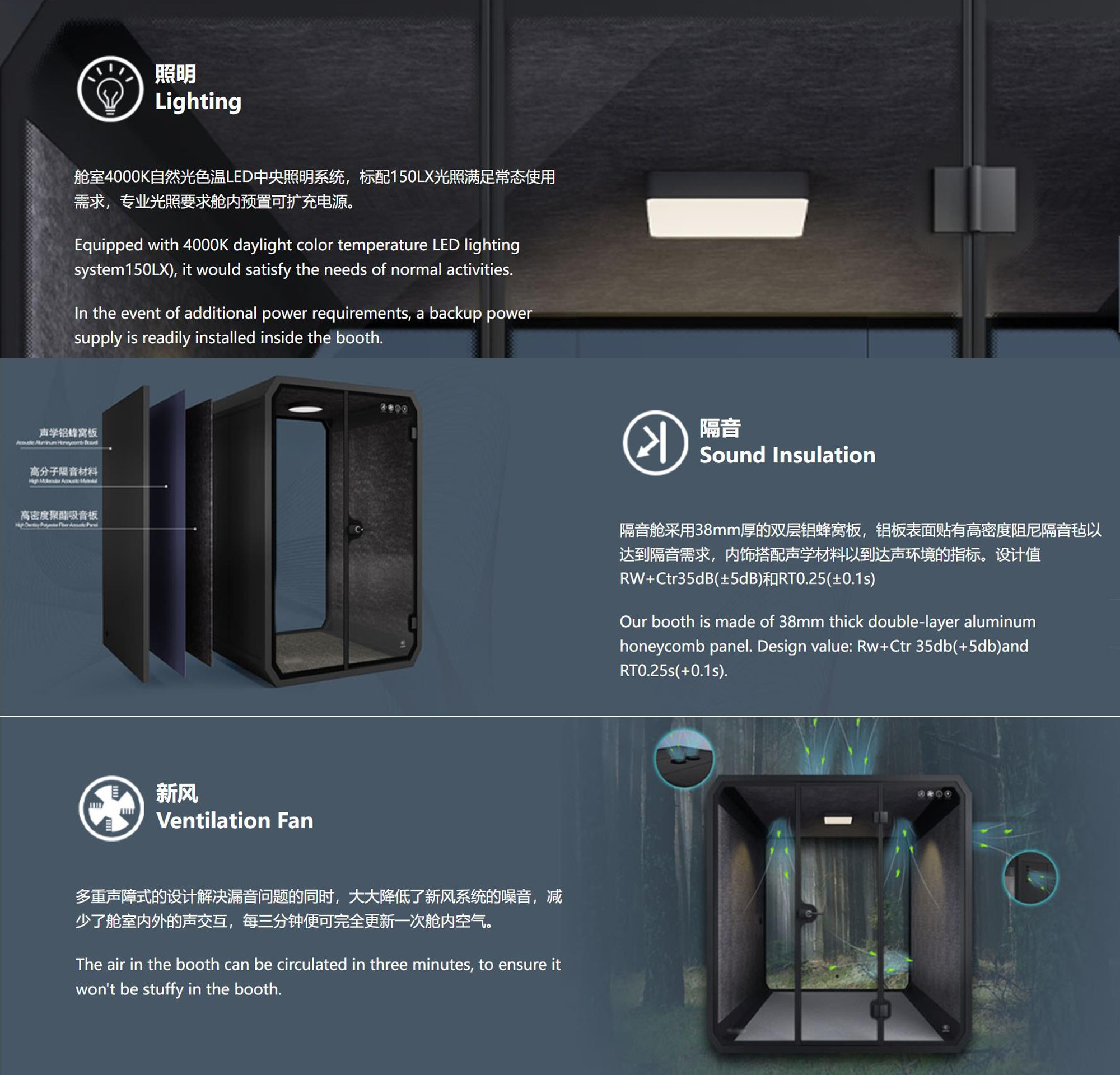

| Cabin Side Wall /Floor/Ceiling | Sandwich type sound insulated structure, panel thickness is 38mm to reach flammability rating Grade-A. Both two faceplates are aluminum honeycomb wall panel, in between filled with high-density eco-friendly sound-absorbing cotton which has 2mm polymer damping sound insulation material pasted. | ||||||
| Cabin Front Wall | silk printing tempered glass, thk.10mm | ||||||
| Cabin Interior Wall | eco-friendly polyester fiber acoustic panel, thk.12mm | ||||||
| Entrance | single leaf door made of tempered glass with silent handle & lock | ||||||
| Power Supply | 100-240V/50-60Hz | ||||||
| Lighting System | Natural lighting. Three-color adjustable light sensor 7W flat panel lighting. | ||||||
| Exhaust System | light and silent Fresh Air Ventilation, the PD principle of long path soundproofed air circulation ducts. The cabin noise will be lower than 35 dB under full power operation. | ||||||
| Electrical System | socket (plug way is optional), switch | ||||||
| Furniture | optional for supply | ||||||
| Sound Insulation Parameter | Sound Transmission Loss | RW+Ctr35dB(±5dB) | |||||
| Reverberation Time | RT0.25s(±0.1s) | ||||||
| Voice Clarity | 99% (D50) | ||||||

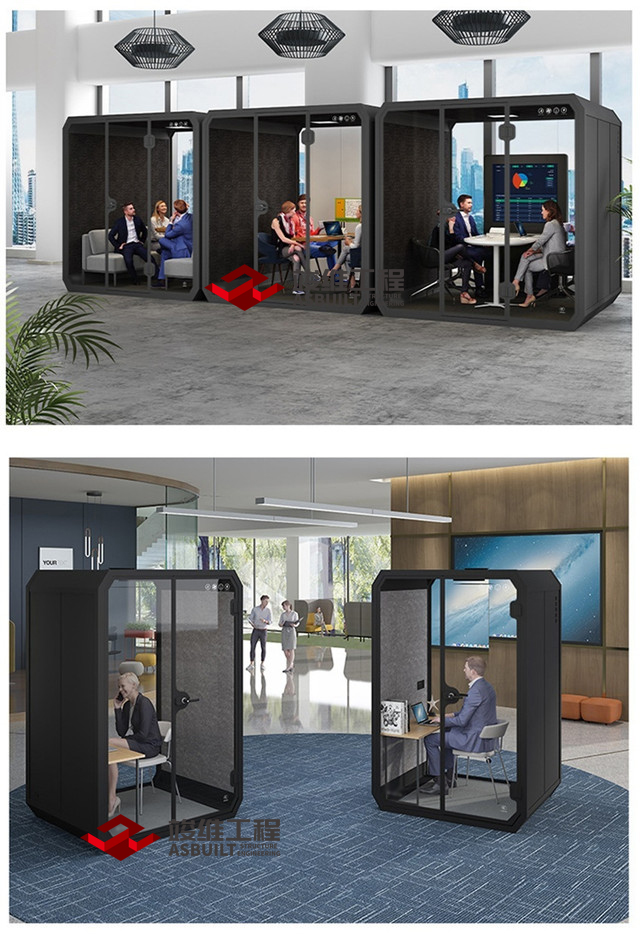

Modular Silence Booth provides you a private and comfortable place to do your creative works.
Prefab Sound Box satisfy your needs for creative design space.
| Work | Office |
| Studio | |
| Meeting Room | |
| Conference Room | |
| Telephone Booth | |
| Recreation | Broadcast Room |
| Live Room | |
| KTV | |
| Musical Room | |
| Piano Room | |
| Learning | Training Room |
| Study Room |
