Description
This PU cold room panel is connected by cam-lock or plug-in, which is easy to assemble, has the advantages of fire resistance, high compressive strength, good sealing, etc. This polyurethane panel suits for the freezer room with temperature of -50℃ to +100℃ and keep the food like meat/fruit/vegetable nonperishable.
Physical Characteristics
Panel thickness: 50mm, 75mm, 100mm, 150mm, 200mm
office room area | 50mm thickness |
processing room 10℃ | 50mm/75mm PU |
5℃ | 75mm/100mm PU |
-18℃ | 100mm/150mm PU |
-25℃ / -35℃ | 150mm/200mm PU |
surface metal plate | SS, GI, aluminum etc. |
Storage Cargos | Suggested Tempreture |
processing room | 10℃ |
fruit, vegetable, dry food | 0C~-5℃ |
medicine, cake, pastry, chemical material | 0C~-5℃ |
ice storage room | -5~-10℃ |
fish, meat | -18~-25℃ |
deep freezer | -25C~-35℃ |
Feature of modular cold room:
-- temperature range: -40~+15℃ .
-- size: customization.
-- functions: fresh-keeping. freezing, quick-freezing, fire-proofing, air-conditioning.
-- fully automatic control system.
Components of modular freezer room:
-- condensing unit: bitzer, copeland, maneurop.
-- evaporator: eltess air-cooler.
-- insulation: polyurethane, with density from 40kg/m3 to 45kg/m3
-- other accessories as per project demand.
Specification (Optional)

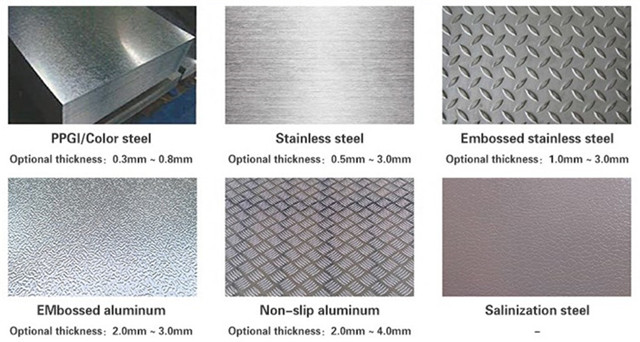

There are several types of metal sheet as the optional surface plate for the customized project.
FAQ:
1. What's the MOQ?
A: One unit of the cold room.
2. Can you provide the cooling system as well?
A: Surely we are available in supplying the cooling equipment like the compressor.
3. How long is the lead time?
A: Our delivery time is 25days since the arrival of your down payment and confirmation of processing drawing.
4. How to install?
A: We will provide a construction drawing as assembly manual, as well as some video and photoes of our previous project for your referenced.
5. How about the warranty?
A: We provide 1 year warranty on whole modular room including the accessories and equipment.
