ASBUILT
Description

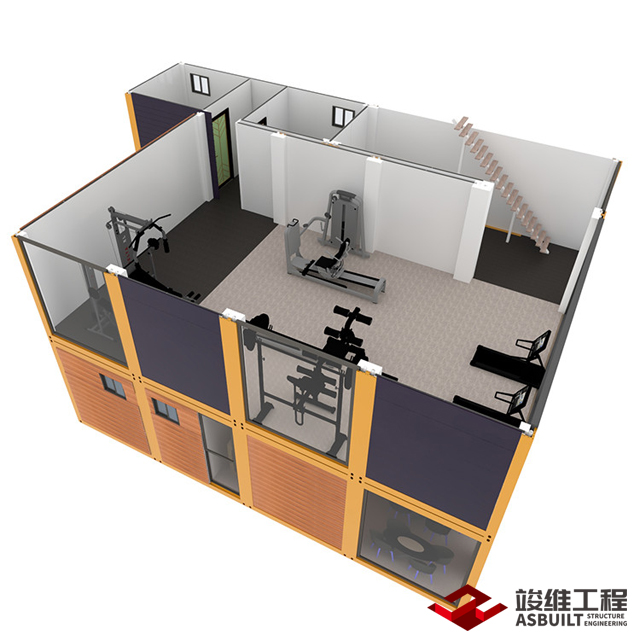

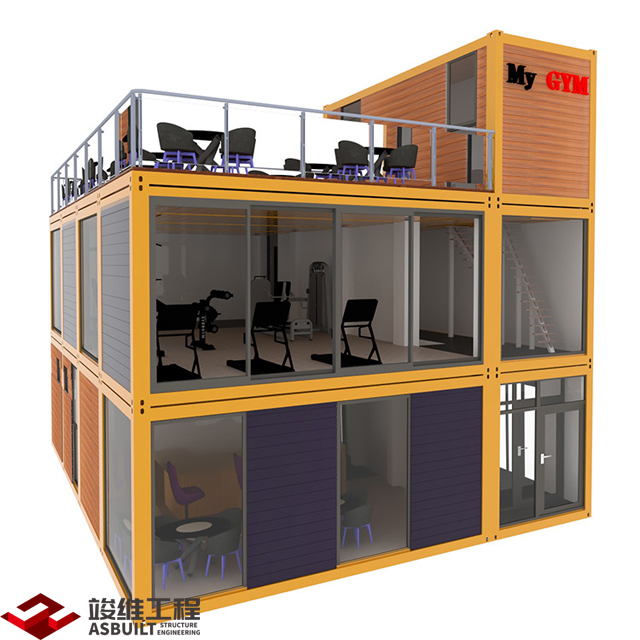

This Modular Gym House/ Prefabricated Recreation Room is assembled by flatpack container modules.
The flatpack container house is a kind of highly prefabricated and mature containerized porta cabin, composed of high-strength galvanized section profiles and insulated enclosure system, which can be multi stacked in 3 floors.
Each unit of flatpack container house is finished assemble in 40 minutes by using crane. After assembly, the flatpack container cabin can be hoisted wholely by crane and move to other site. It shorts the time from build to deliver and lower the overall costs.
Its integrated drainage system composed of roof gutter and hidden downpipe perfectly solves the problem of water leakage.
The flatpack container module has the excellence of integrity framework, high-level prefabrication, easy assembly, modularization for flexible combination and bodily movement.
Standard Dimension
20ft High-cube L6055×W2435×H2896mm
10ft High-cube L3048×W2435×H2896mm
Application
education, pop-up campus, school, classroom
Data Sheet of Flatpack Container House
Item | Specification | Details |
| Dimension | External | L6055×W2435×H2896mm |
| Internal | L5895×W2275×H2605mm | |
| Weight | Within the range of | 1350-1850KG |
| Loading Volume | standard 6 modules /40'HC | more or less for customized size |
| Technical Performance | Floor Load | 2.0 KN/m2 |
| Roof Load | 0.75 KN/m2 | |
| Wind Load | 0.50 KN/m2 | |
| Seismic Fortification Intensity | 8 | |
| Fire Rating | Classification A1 | |
| Thermal Insulation | 0.62 W/(sqm.K) | |
| Heat Preservation | 0.043 W/(m.K) | |
| Sound Insulation | 20 DB | |
| Stacked Layers | 3 | |
| Repeated Dismantle Times | 180+ | |
| Life Time | 20+ years |
Packing
Dimension of Flat Packing Box for delivery
Delivery and Transporation
Similar Application Case
