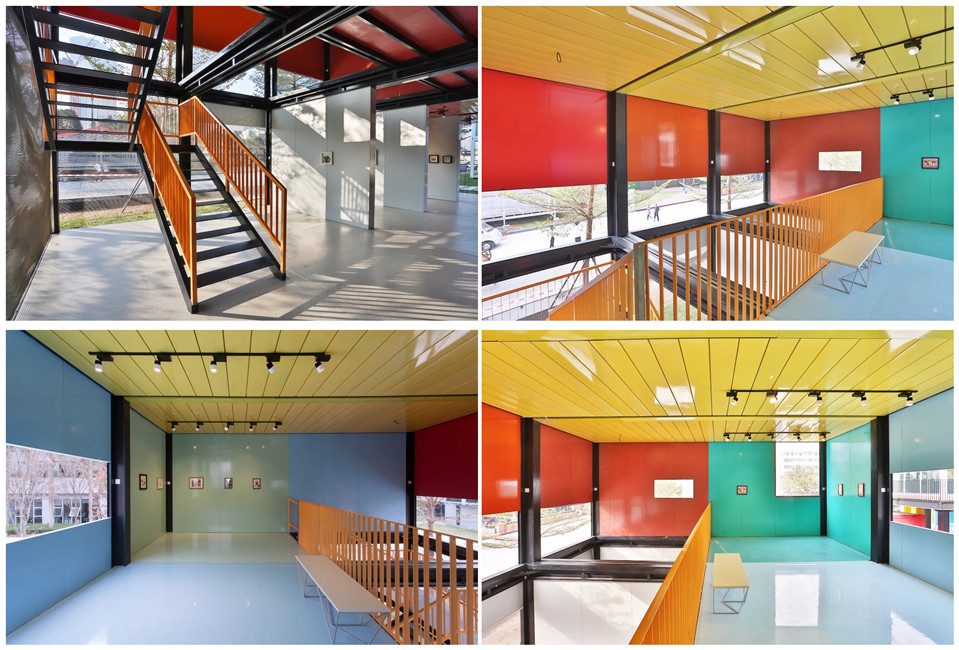

Prefabricated Exhibition Hall, Showroom Building Assembled By Flatpack Container Modules

 Description

This Prefabricated Campus Building is assembled by the flatpack container house, which is a kind of highly prefabricated and mature containerized porta cabin, composed of high-strength galvanized section profiles and insulated enclosure system, which can be multi stacked in 3 floors.

Each unit of flatpack container house is finished assemble in 40 minutes by using crane. After assembly, the flatpack container cabin can be hoisted wholely by crane and move to other site. It shorts the time from build to deliver and lower the overall costs.

Its integrated drainage system composed of roof gutter and hidden downpipe perfectly solves the problem of water leakage.

The flatpack container module has the excellence of integrity framework, high-level prefabrication, easy assembly,  modularization for flexible combination and bodily movement.

 Standard Dimension

• 20ft High-cube, L6055×W2435×H2896mm

• 10ft High-cube, L3048×W2435×H2896mm




 Application

education, pop-up campus, school, classroom

 Data Sheet of 20ft Flatpack Container House

Item	Specification	Details
Dimension	External	L6055×W2435×H2896mm
	Internal	L5895×W2275×H2605mm
Weight	Within the range of	1350-1850KG
Loading Volume	standard 6 modules /40'HC	more or less for customized size
Technical Performance	Floor Load	2.0 KN/㎡
	Roof Load	0.75 KN/㎡
	Wind Load	0.50 KN/㎡
	Seismic Fortification Intensity	8
	Fire Rating	Classification A1
	Thermal Insulation	0.62 W/(sqm.K)
	Heat Preservation	0.043 W/(m.K)
	Sound Insulation	20 DB
	Stacked Layers	3
	Repeated Dismantle Times	180+
	Life Time	20+ years
