Description

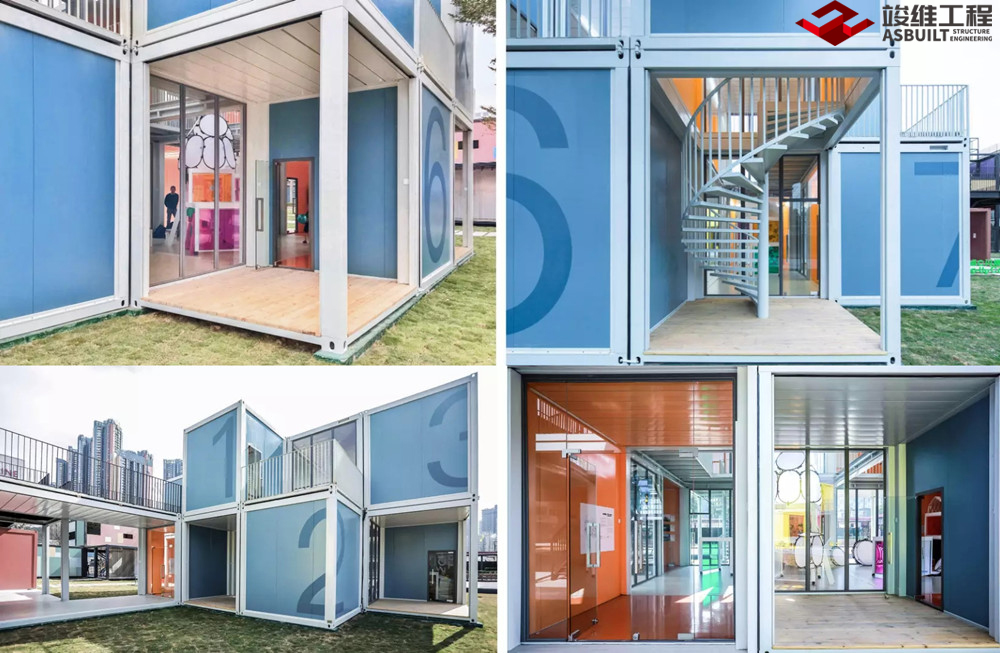

This Prefabricated School Classroom building is assembled by the flatpack container house, which is a kind of highly prefabricated and mature containerized porta cabin, composed of high-strength galvanized section profiles and insulated enclosure system, which can be multi stacked in 3 floors.
Each unit of flatpack container house is finished assemble in 40 minutes by using crane. After assembly, the flatpack container cabin can be hoisted wholely by crane and move to other site. It shorts the time from build to deliver and lower the overall costs.
Its integrated drainage system composed of roof gutter and hidden downpipe perfectly solves the problem of water leakage.
The flatpack container module has the excellence of integrity framework, high-level prefabrication, easy assembly, modularization for flexible combination and bodily movement.
Standard Dimension
10ft High-cube
L3000×W2435×H2896mm
Application
Site camp accommodation, office, residence, resort, hotel, education, medical, hospital, etc
Data Sheet of Flatpack Container House
Item | Specification | Details |
| Dimension | External | L3000×W2435×H2896mm |
| Internal | L2840×W2275×H2605mm | |
| Weight | Within the range of | 1150-1850KG |
| Loading Volume | standard 18 modules /40'HC | more or less for customized size |
| Technical Performance | Floor Load | 2.0 KN/㎡ |
| Roof Load | 0.75 KN/㎡ | |
| Wind Load | 0.50 KN/㎡ | |
| Seismic Fortification Intensity | 8 | |
| Fire Rating | Classification A1 | |
| Thermal Insulation | 0.62 W/(sqm.K) | |
| Heat Preservation | 0.043 W/(m.K) | |
| Sound Insulation | 20 DB | |
| Stacked Layers | 3 | |
| Repeated Dismantle Times | 180+ | |
| Life Time | 20+ years |
